Inspect housings and assemblies
Visualize devices, instruments, and internal components and examine their structure.
Device Engineering and Medical Technology
CAD inspection for devices, housings and precision assemblies
intuitive & practical 3D without CAD expertise
affordable & universal many 3D/2D interfaces
Why use 3D-Tool in device engineering and medical technology?
In devices, instruments and compact products, housings, controls, connections and precision components are located close together. With 3D-Tool, you open internal and external CAD data, inspect the internal structure using sections and exploded views, and check dimensions, installation spaces and connections.
Check installation spaces
Check distances and clearances between housings, installed parts, and adjacent components.
Inspect connections
Check connectors, mounting points, holes, and connection dimensions.
Create technical views
Create sections and exploded views for documentation and coordination.
CAD viewer for devices, consumer products, and medical technology
In compact products, housings, controls, connectors, fasteners, and precision components are located close together in a limited space. Manufacturing, assembly, service, and documentation teams must still be able to understand the internal structure quickly.
3D-Tool opens supported CAD data from internal engineering and external suppliers. Components can be shown or hidden, and the internal structure can be examined using sections and exploded views. Dimensions, distances, and installation spaces are checked directly on the model. Informative model views with measurements and annotations support manufacturing, service, and technical documentation.
Inspect devices, instruments, and installation situations
In compact assemblies, housings, installed parts, and connections must fit within limited installation spaces. Dimensions, clearances, and the internal structure must also be understandable outside engineering.
- Device and consumer product manufacturers: Inspect housings, controls, and internal assemblies.
- Medical technology and precision engineering: Check instruments, precision components, connections, and small installation spaces.
- Manufacturing and assembly: Trace positions, distances, and the structure using current CAD data.
- Service and technical documentation: Prepare sections, exploded views, and technical views for documents and coordination.
Functions for product inspection and technical visualization
For devices and instruments, the most relevant functions provide insight into compact assemblies and communicate technical details clearly.

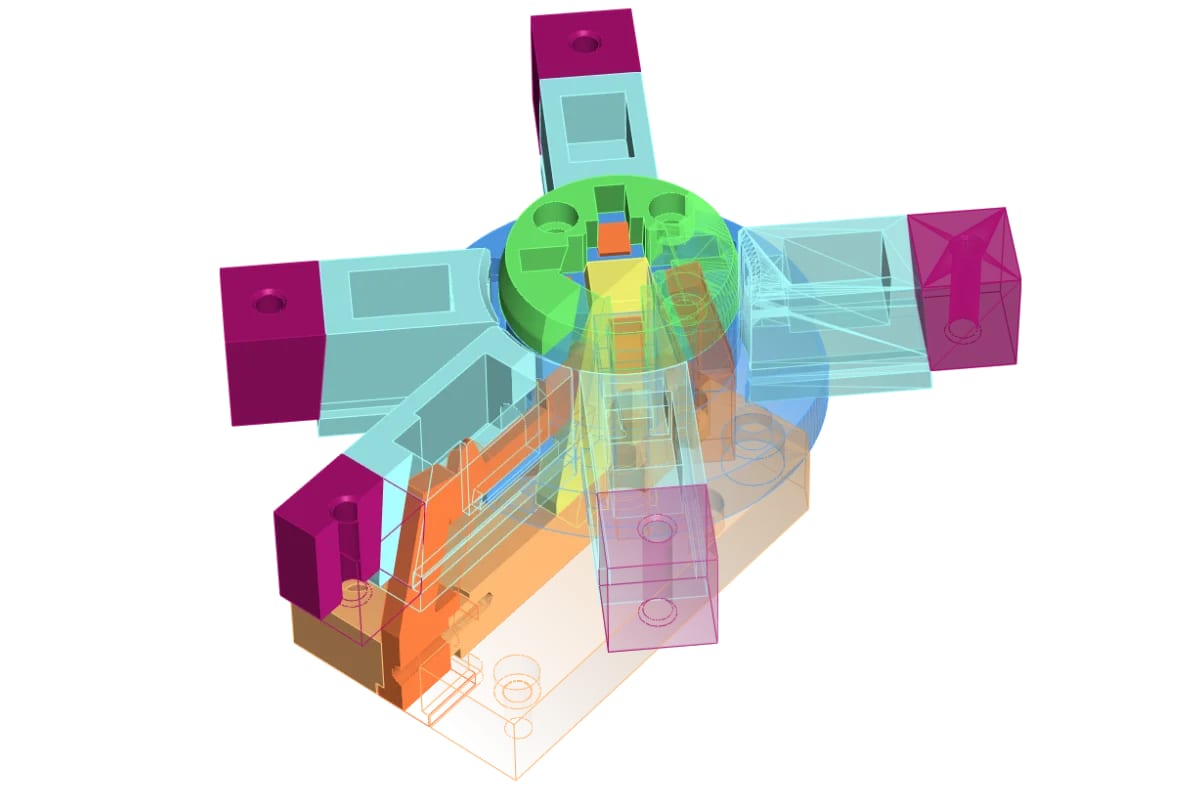

- Sections and exploded views: Examine and visualize internal components and assembly structures.
- Measurements: Check distances, angles, radii, diameters, holes, and other dimensions.
- Collision analysis: Detect contacts, intersections, and insufficient clearances between installed parts.

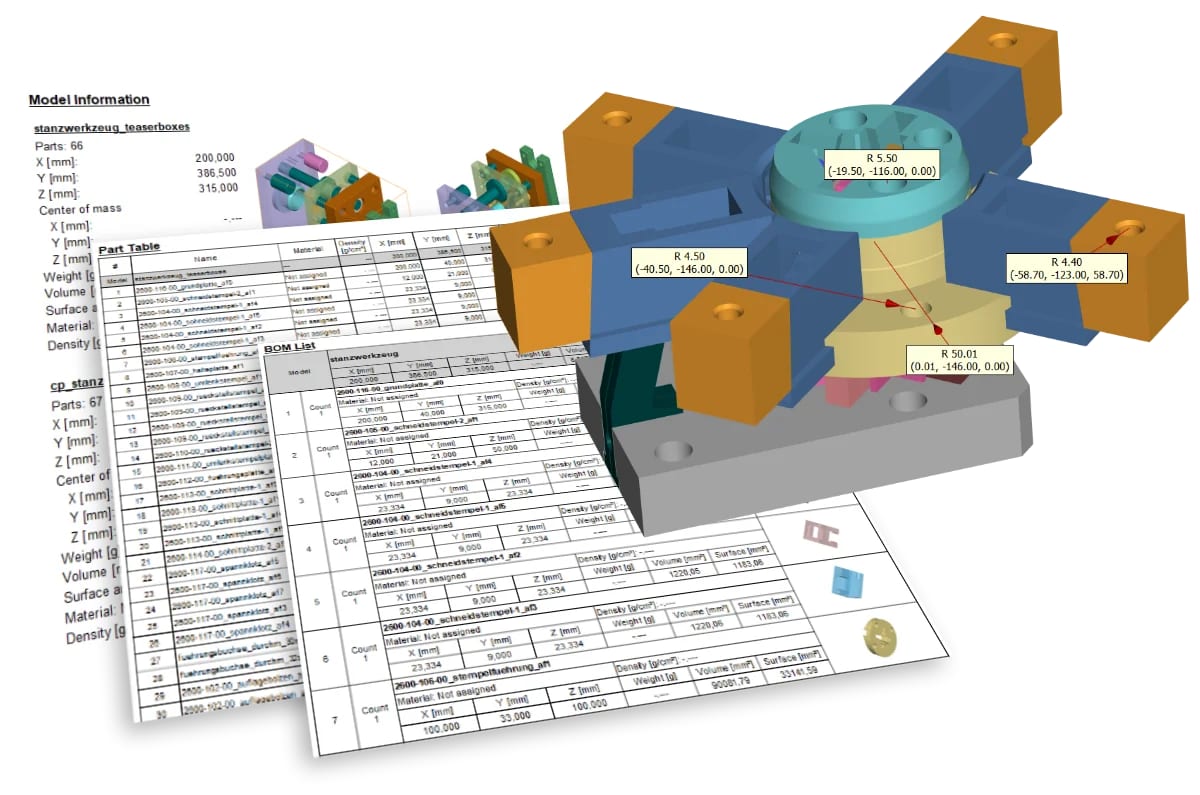

- Visualize and document: Show and hide components and prepare model views with dimensions and annotations for coordination and documentation.
View the tutorial on section measurements and exploded views
Resolve installation situations and communicate product information clearly
Housings, installed parts, and connections can be checked on the complete product model and then presented clearly to other departments.
- Identify installation problems earlier: Collisions and insufficient clearances become visible directly in the assembly.
- Inspect connections selectively: Positions, holes, and distances can be checked on the model.
- Communicate technical information: Sections, exploded views, and Defined Views support manufacturing, service, and documentation.
Frequently Asked Questions (FAQ)
Can 3D-Tool visualize complex device assemblies?
Yes. Supported assemblies can be opened, individual components shown or hidden, sectioned, and arranged as exploded views.
Can installation spaces and connectors be measured?
Yes. Distances, angles, diameters, holes, and other dimensions can be checked directly on the model.
Can 3D-Tool detect collisions in compact assemblies?
Yes. Collision analysis shows contacts and intersections. Clearance mode can also visualize insufficient clearances.
Can views be created for technical documentation?
Yes. Components can be shown or hidden, sectioned, or arranged as an exploded view. Measurements, annotations, and Defined Views can be prepared for technical communication.
Is 3D-Tool also suitable for CAD data from medical technology?
3D-Tool can open, measure, and visualize supported CAD data for devices, instruments, housings, and precision components. The available formats depend on the edition used.
