Convert 3D CAD Data

Convert 3D file formats easily

intuitive & practical 3D without CAD expertise
affordable & universal many 3D/2D interfaces

Convert more than 30 CAD formats

3D-Tool lets you work independently of expensive CAD interfaces. With 3D-Tool Premium, you convert native CAD models into exact BREP formats such as STEP, IGES, JT, X_T and SAT. Alternatively, you create triangulated visualization data such as 3D-PDF, 3D-HTML, STL and glTF.


Download now
and try for free

Converting 3D CAD data between formats in the 3D-Tool converter

How can CAD data be reused with 3D-Tool?

3D-Tool prepares CAD data for exchange with customers and suppliers, visualization and 3D printing. The 3D-NativeCAD Converter included in 3D-Tool Premium converts supported CAD models into exchange formats such as STEP, IGES, JT, Parasolid X_T and SAT. Exact geometry can only be exported if the source file already contains exact geometry.

For presentations and model sharing, the converter also creates visualization files such as 3D-PDF, 3D-HTML and glTF. The 3D-Tool Viewer exports triangulated models in formats such as STL, OBJ or PLY for use in 3D printing and rendering software.

CAD interfaces

3D Interfaces for Companies

Do you receive different 3D formats from customers and suppliers? The interfaces in the 3D-Tool Converter and Viewer let you use this data in development, design and production planning.

  • The 3D-NativeCAD Converter converts models from major CAD systems into precise BREP geometry in the 3D exchange formats STEP, IGES, X_T, SAT, and JT.
  • The 3D-NativeCAD Converter creates triangulated 3D product visualizations from CAD models and 3D exchange formats, including 3D-PDF, 3D-HTML, FBX, 3MF, and glTF.
  • The 3D-Tool Viewer saves 3D models in 3D visualization formats such as STL, OBJ, PLY, 3DS, and WRL.

Find the right use case

Poster made up of the names of well-known 3D CAD formats. Colored arrows symbolize the conversion of a 3D model.
3D-Tool is a universal tool for converting native 3D models into modern exchange and visualization formats. For example, convert to STEP and JT, or create a 3D PDF or 3D HTML file.

Conversion of 3D data

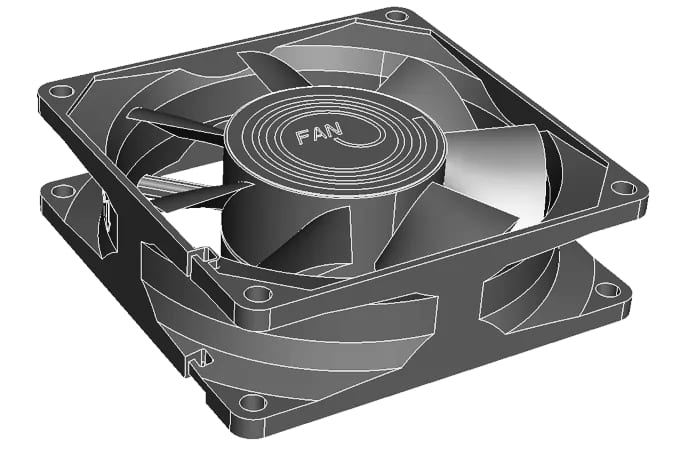

Image of a 3D model with exact surface boundaries (BREPs).
The 3D-NativeCAD Converter in 3D-Tool Premium converts CAD data to common 3D exchange formats. Exact geometries, so-called BREP models, are only created if the original file already contains exact geometries.

Convert 3D CAD data

The 3D-NativeCAD Converter converts many common 3D CAD formats into exact 3D models (BREP) in STP, IGS, X_T, SAT, and JT format. This makes it a flexible and cost-effective interface for many CAD applications.

  • If the model contains assembly information, select individual assemblies and parts for conversion.
  • For STEP output, choose between output versions AP214 and AP242.
  • For JT output, choose between output versions 8.1, 9.5, and 10.0.
  • Selectively include or exclude PMI, curves, points, and hidden elements from the conversion.

Compare all import and export formats

Save 3D visualization files

The 3D-Tool Viewer saves 3D models in the visualization formats STL, OBJ, PLY, 3DS, WRL, U3D and PDF. It serves as a flexible CAD interface for 3D printing and 3D rendering software.

  • When importing 3D CAD formats, control the visualization resolution - and with it the display quality and file size.
  • In the viewer, merge multiple files into one model or split a model into multiple files.
  • Delete, duplicate, scale, and position parts and assemblies directly in the viewer.

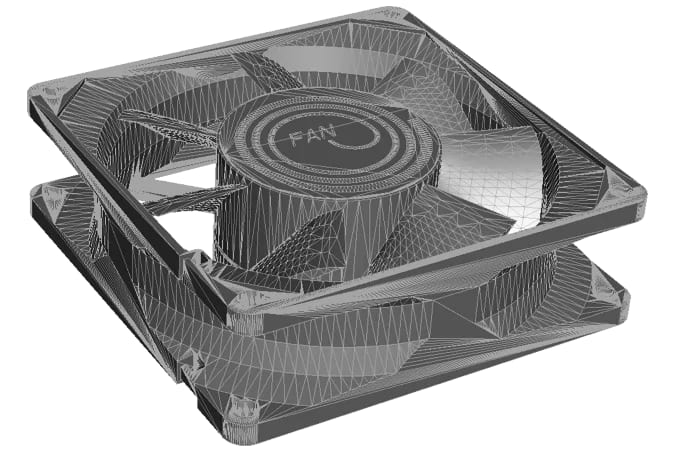

Image of a 3D model in the form of visualization data with triangulated surfaces (MESH).
The 3D-Tool Viewer saves 3D models in various visualization and 3D printing formats. Since the models are already triangulated when loaded into the viewer, output as exact geometry (BREP) is not possible.
Image of a 3D HTML product visualization created with the 3D-Tool CAD viewer for display in web browsers.
The 3D-NativeCAD Converter creates 3D-HTML files for interactive product visualizations in a web browser. View and move the models in 3D, show or hide parts, or display them in an exploded view.

Convert 3D visualization files

The 3D-NativeCAD Converter creates triangulated 3D product visualizations, for example 3D-PDF, 3D-HTML, FBX, 3MF, and glTF.

  • Automatic surface stitching ensures very high quality of the output visualization data.
  • The converter also creates older visualization and print formats such as STL, OBJ, VRML, and U3D.
  • Selectively include or exclude curves, points, and hidden elements from the conversion.
  • Set the triangulation quality for conversion - just as in the viewer.

Compare the saving and conversion features

3D CAD file formats

CATIA - CATProduct, CATPart, 3D-XML, CGR

  • Convert CATProduct and CATPart into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize CATIA models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Designcenter (Siemens NX) - PRT

  • Convert PRT files from Designcenter (Siemens NX) into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Designcenter (Siemens NX) assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

I-DEAS - MF1, ARC, UNV, PKG

  • Convert MF1, ARC, UNV and PKG into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize I-DEAS models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Creo - ASM and PRT

  • Convert Creo ASM and PRT into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Creo assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML
  • Family table support via XPR and XAS accelerator files

SolidWorks - SLDASM and SLDPRT

  • Convert SLDASM and SLDPRT into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize SolidWorks assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML
  • Supports SolidWorks configurations

Designcenter Solid Edge - PAR, PSM and ASM

  • Convert PAR, PSM and ASM into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Designcenter Solid Edge assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Autodesk Inventor - IAM and IPT

  • Convert IAM and IPT into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Inventor assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Autodesk Navisworks - NWD

  • Convert NWD into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Navisworks models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Autodesk Revit - RFA and RVT

  • Convert RFA and RVT into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Revit models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

AutoCAD - 3D-DWG and 3D-DXF

  • Convert 3D-DWG and 3D-DXF into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize AutoCAD 3D models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Rhino - 3DM

  • Convert 3DM (NURBS) into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize Rhino models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

JT

  • Convert JT BREPs into CAD exchange formats such as STEP, IGES, SAT and X_T
  • Visualize JT models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

STP / STEP

  • Convert STEP into CAD exchange formats such as IGES, SAT, X_T and JT
  • Visualize STEP assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

IGS / IGES

  • Convert IGES into CAD exchange formats such as STEP, SAT, X_T and JT
  • Visualize IGES assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

X_T / X_B

  • Convert X_T and X_B into CAD exchange formats such as STEP, IGES, SAT and JT
  • Visualize Parasolid assemblies and parts as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

SAT / SAB

  • Convert SAT and SAB into CAD exchange formats such as STEP, IGES, X_T and JT
  • Visualize SAT and SAB models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

DGN / IFC

  • Convert DGN and IFC into CAD exchange formats such as STEP, IGES, X_T and JT
  • Visualize DGN and IFC models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

VDA

  • Convert VDA into CAD exchange formats such as STEP, IGES, SAT, X_T and JT
  • Visualize VDA models as 3D-PDF, OBJ, STL, PRC, U3D, FBX, glTF and HTML

Frequently Asked Questions (FAQ)

Which formats can the 3D-NativeCAD Converter output?

The 3D-NativeCAD Converter exports exact BREP geometries to formats such as STEP, IGES, X_T, SAT and JT. In addition, it supports common visualization formats including 3D-PDF, 3D-HTML, FBX, 3MF, glTF and STL.

Which native CAD formats can 3D-Tool read?

3D-Tool Premium reads native formats from major CAD systems such as CATIA, Designcenter (Siemens NX), SolidWorks, Designcenter Solid Edge, Creo, AutoCAD, Autodesk Inventor, Navisworks and Rhino. Exchange formats such as JT, STEP and IGES are also supported. In total, 3D-Tool supports more than 30 different formats.

Can 3D-Tool convert CAD files into other CAD files?

Yes. The 3D-NativeCAD Converter converts CAD data to standardized exchange formats that can be read by almost any CAD system. It is part of 3D-Tool Premium. In addition, the 3D-Tool Viewer saves models in visualization formats such as STL, OBJ and 3D-PDF.

Can I choose the STEP or JT output version?

Yes. For STEP output you can choose between AP214 and AP242, and for JT output between versions 8.1, 9.5 and 10.0.

Can 3D-Tool also save individual parts from assemblies?

With the 3D-NativeCAD Converter in 3D-Tool Premium, you select individual parts from an assembly and convert them separately. In the 3D-Tool Viewer, you can also save selected components separately. This lets you selectively share components from large assemblies or process them individually.
