Features of the 3D-Tool CAD Viewer

Viewer and converter interfaces

  • 3D reader for many visualization formats, 3D exchange formats and native formats from the leading CAD systems: CATIA, Siemens NX, Creo, SolidWorks, Solid Edge and Autodesk Inventor
  • PMI display for 3D models from CATIA, Creo, Siemens NX, and SolidWorks as well as JT, 3DXML and STEP AP242
  • 2D reader for DWG and DXF drawings
  • 3D-NativeCAD Converter for converting native 3D CAD models into 3D exchange formats
  • Supported file formats: BASIC: 3ds, 3mf, asc, dwg (2D), dxf (2D), obj, iv, ply, slp, stl, wrl, xgl, zgl. ADVANCED: step, stp, stpz, iges, igs, vda, sat, x_t, x_b. PREMIUM: 3dm, 3dxml, asm, catpart, catproduct, cgr, dae, dgn, dwg (3D), dxf (3D), gltf, iam, ipt, ifc, jt, prc, model, par, psm, rvt, rfa, sldprt, sldasm, u3d, vda

›› See all formats and versions here

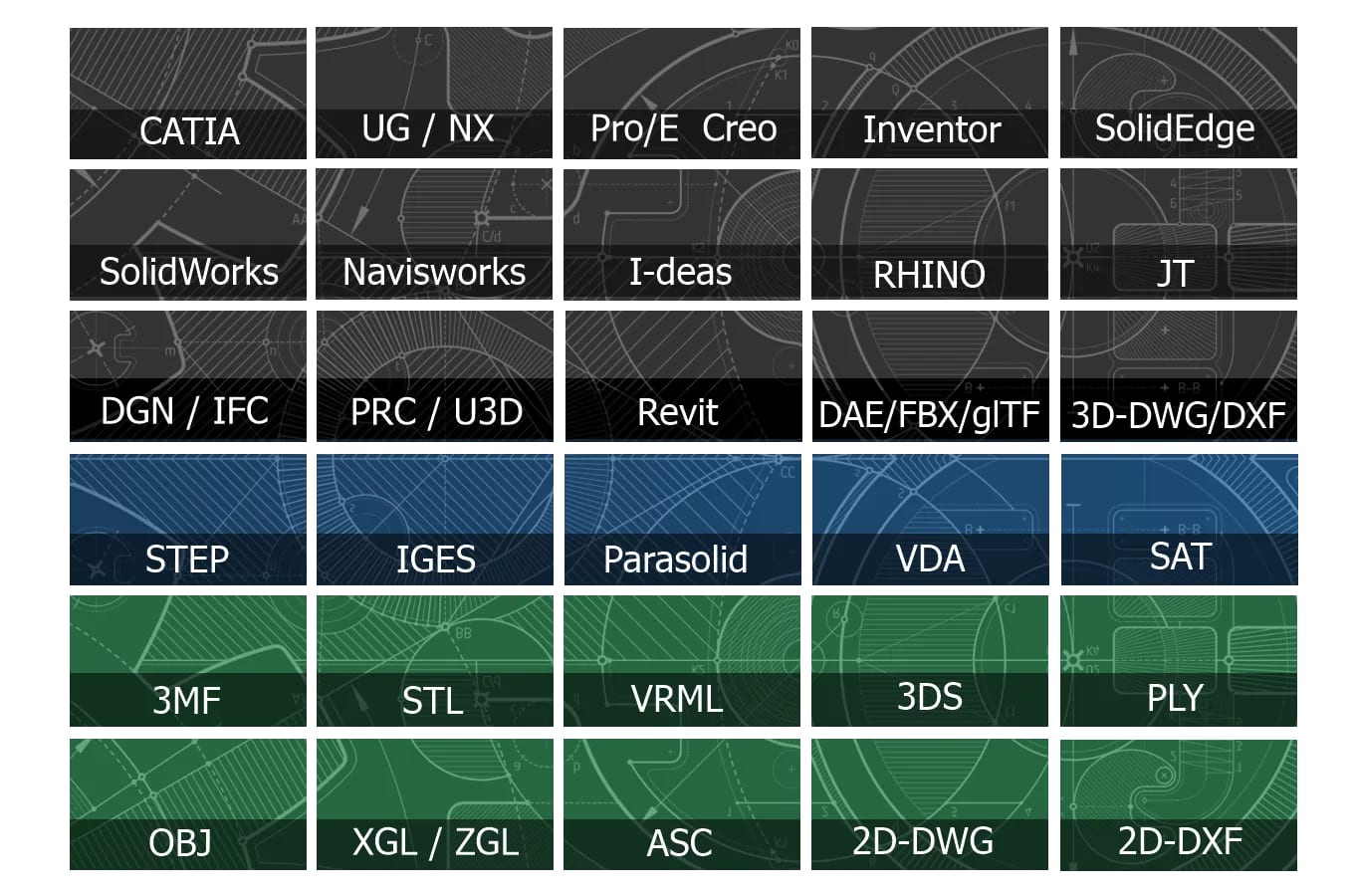

Schematic representation of the file formats supported by the 3D-Tool viewer and converter
The green highlighted formats are supported by all 3D-Tool versions. The blue highlighted formats are included in Advanced and Premium, the black highlighted formats only in the Premium version.

Display and presentation

  • Navigation with simple mouse actions
  • Search and filter the model tree for parts and assemblies
  • Create cross sections and exploded views
  • Customize the graphic display of parts and assemblies
  • Adding annotations to 3D models
  • Coloring parts, surfaces and curves
  • Insertion of redline markups in 2D drawings
  • Copy, move, rotate, mirror and scale parts
  • Full screen mode and support for 3Dconnexion 3D mice
  • Program interface in English, German, French, Korean and Spanish language as well as in several modern color styles

›› Learn more about 3D visualization

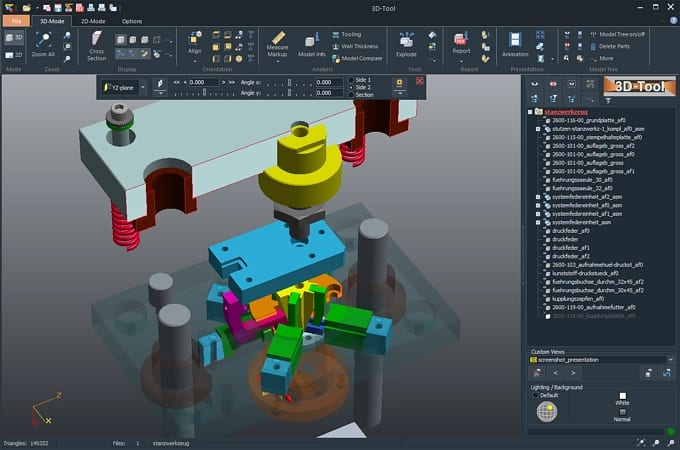

Screenshot of the user-friendly interface of the 3D-Tool CAD Viewer with an exploded assembly in cross-section
With simple mouse actions you create informative 3D views for an effective presentation of your design. Save as many views as you like for an animated slideshow.

Measurements and analyses

  • Wide range of 3D measuring tools: distances, angles, radii, minimal bounding box, wall thickness, free space and area
  • Information about the volume, weight, center of mass, surface area and contour of parts and assemblies
  • Measure distances, angles and radii in 2D drawings
  • Loading multiple models and comparing CAD models
  • Tool analysis with undercuts and projected area
  • Wall thickness analysis with two calculation methods: single ray and fitted ball
  • Collision analysis for detecting part overlaps and insufficient distances
  • User-defined reports (BOM, model overview, dimensions, weights) and report output as PDF, RTF, and HTML
  • Professional Digital Mock-Up (DMU) without an additional CAD license

›› Learn how to use these features

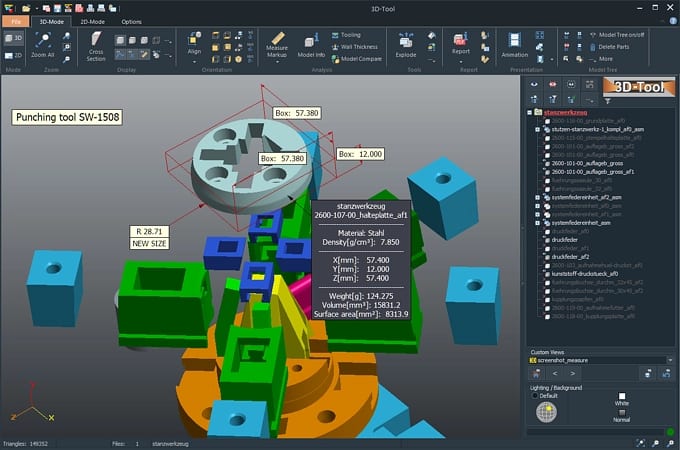

Screenshot of the intuitive measuring tools of the 3D-Tool CAD Viewer - Dynamic 3D dimensions and 3D annotations directly on the model
With 18 measuring features and 7 annotation features, you create dynamic markups that move with the model and even with exploded parts.

Publish and save

  • Publish 3D models and 2D drawings together with the 3D-Tool viewer as a directly executable EXE file; or save as a DDD file for viewing with the separate 3D-Tool Free Viewer
  • Publish 3D models as 3D PDF for Adobe Reader or as HTML web page for modern browsers
  • Combine models and parts into new assemblies and models
  • Save in several visualization formats such as STL, OBJ, 3DS, and PLY, for example for 3D printing and 3D rendering
  • Integrated screenshot-to-clipboard function
  • Full-scale printing and printing of multiple views on one sheet
  • Export high-resolution PNG, JPG, and BMP images
  • Export animations as AVI video

›› Download and test now

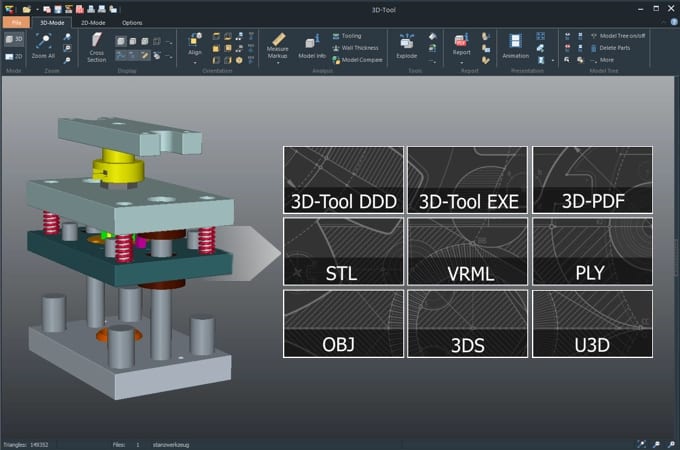

Screenshot of the 3D-Tool Viewer and schematic representation of the 3D formats that the Viewer can save
The 3D-Tool Viewer saves 3D models in various 3D visualization formats and 3D printing formats. You define the triangulation quality when importing the models into the viewer.

Frequently Asked Questions (FAQ)

Why should I use the 3D-Tool CAD Viewer in my company?

3D-Tool enables everyone involved - from purchasing, engineering and production planning to manufacturing and sales - to open and assess 3D models without their own CAD software. The CAD Viewer serves as a universal information tool: dimensions, weights, PMI and many other properties are intuitively and quickly available. In addition, the 3D Viewer supports presentation and documentation: cross-sections, exploded views and animated slideshows make complex products easy to understand.

How can 3D-Tool help me when preparing quotes?

3D-Tool offers many practical features for quote preparation: The Tooling Analysis shows draft angles, undercuts and the projected area. The Wall Thickness Analysis provides information on critical wall thicknesses. The Collision Analysis detects insufficient clearances in assemblies. The Model Comparison makes design changes visible. The measuring tools determine dimensions and the minimum bounding box of parts and assemblies. In addition, Model Info provides key values such as surface area, volume and weight. Costs and feasibility can therefore be assessed quickly and easily without your own CAD software.

How can 3D-Tool help me exchange CAD data with customers and suppliers?

Customers and suppliers may send 3D data as native models directly from their CAD system, as 3D exchange formats such as STEP, JT and Parasolid, or as 3D print formats such as STL, OBJ and 3MF. The 3D-NativeCAD Converter in 3D-Tool Premium converts native models from CATIA, Creo, Siemens NX, SolidWorks, Inventor and many other 3D CAD formats to STEP, IGES, JT, X_T and SAT. In addition, the converter supports export to modern 3D scene formats such as FBX and glTF and publishing models as 3D PDF or 3D HTML.
