Video Measure & Markup - basics
intuitive & practical 3D without CAD expertise
affordable & universal many 3D/2D interfaces

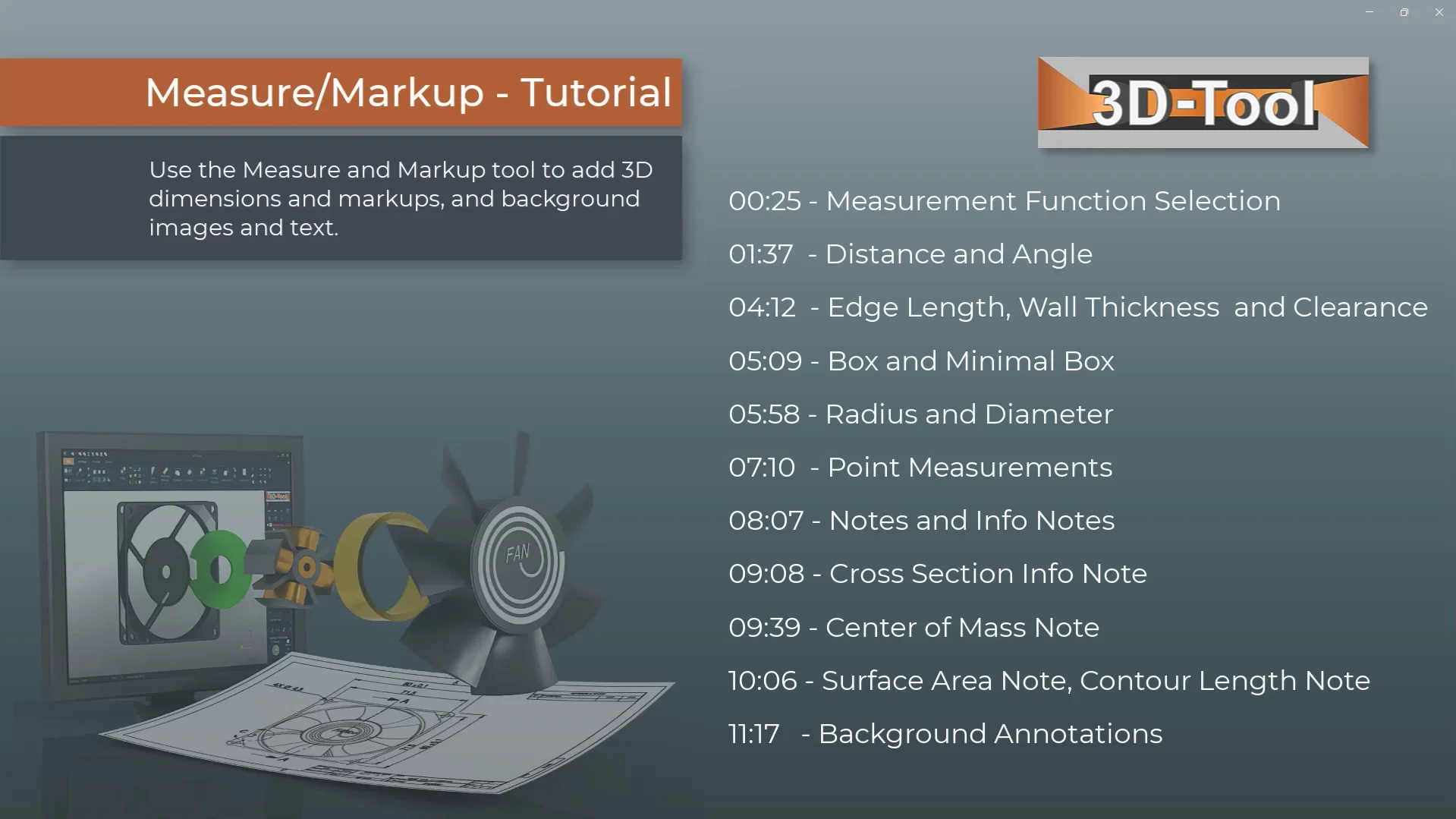

Video Contents
Understand the basics of 3D-Tool annotations and dimensions. Learn all measurement and note functions in the CAD Viewer, from simple distance and angle measurements to clearances, wall thicknesses, minimum bounding boxes, contour lengths, and surface areas. Add text and images to the background of the 3D model, such as your company logo. For detailed measurement of engineering designs, you do not need CAD expertise or lengthy training because intelligent preselection suggests suitable measurement references as you move the mouse pointer over the model.
