3D and 2D CAD-Viewer

3D CAD Viewer with user friendly measure tools

The CAD Viewer 3D-Tool is a professional and user-friendly tool for viewing, analyzing and converting 3D models and for viewing 2D drawings.

Slate Color Style

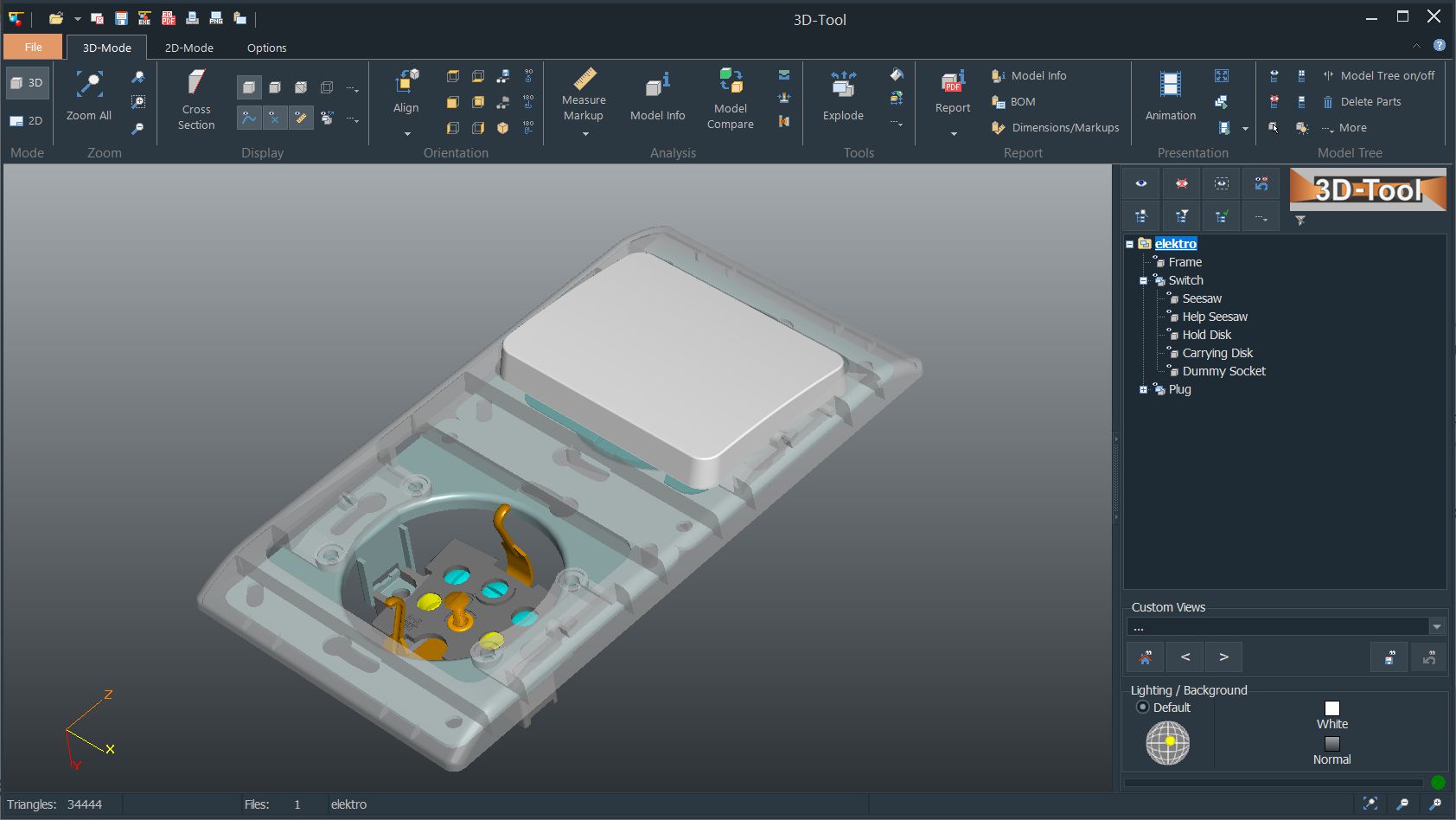

The interface of the 3D viewer is available in English, German, Freanch and Korean language and supports multiple modern color styles

The intuitive user interface of the 3D viewer is available in English, German, French, Spanish and Korean language and supports multiple modern color styles.

Display Models

Exploded view of a 3D model including some sectioned parts

Parts and assemblies can be hidden, switched transparently and displayed in different render modes. You can create cross-sections and exploded views with just a few clicks.

Measuring Tools

3D-native CAD Converter to concert CATIA SolidWorks Siemens NX Creo Inventor

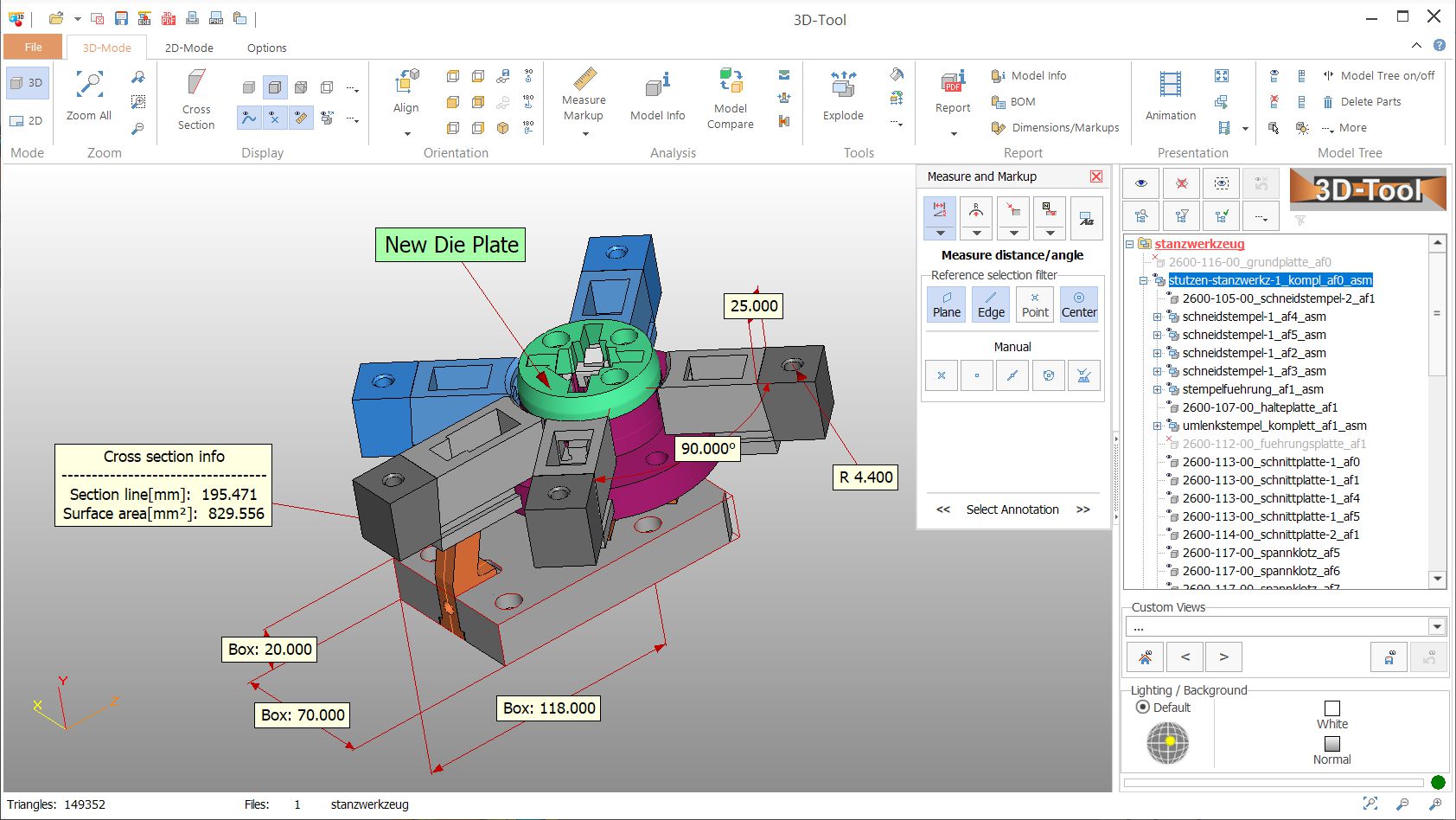

The 3D-Tool Viewer offers measuring tools for distances, angles, radii, wall thicknesses and free spaces. The viewer calculates the size of surfaces, cut surfaces, contour lengths, the center of mass as well as the minimum bounding box of parts.

Tooling Analysis

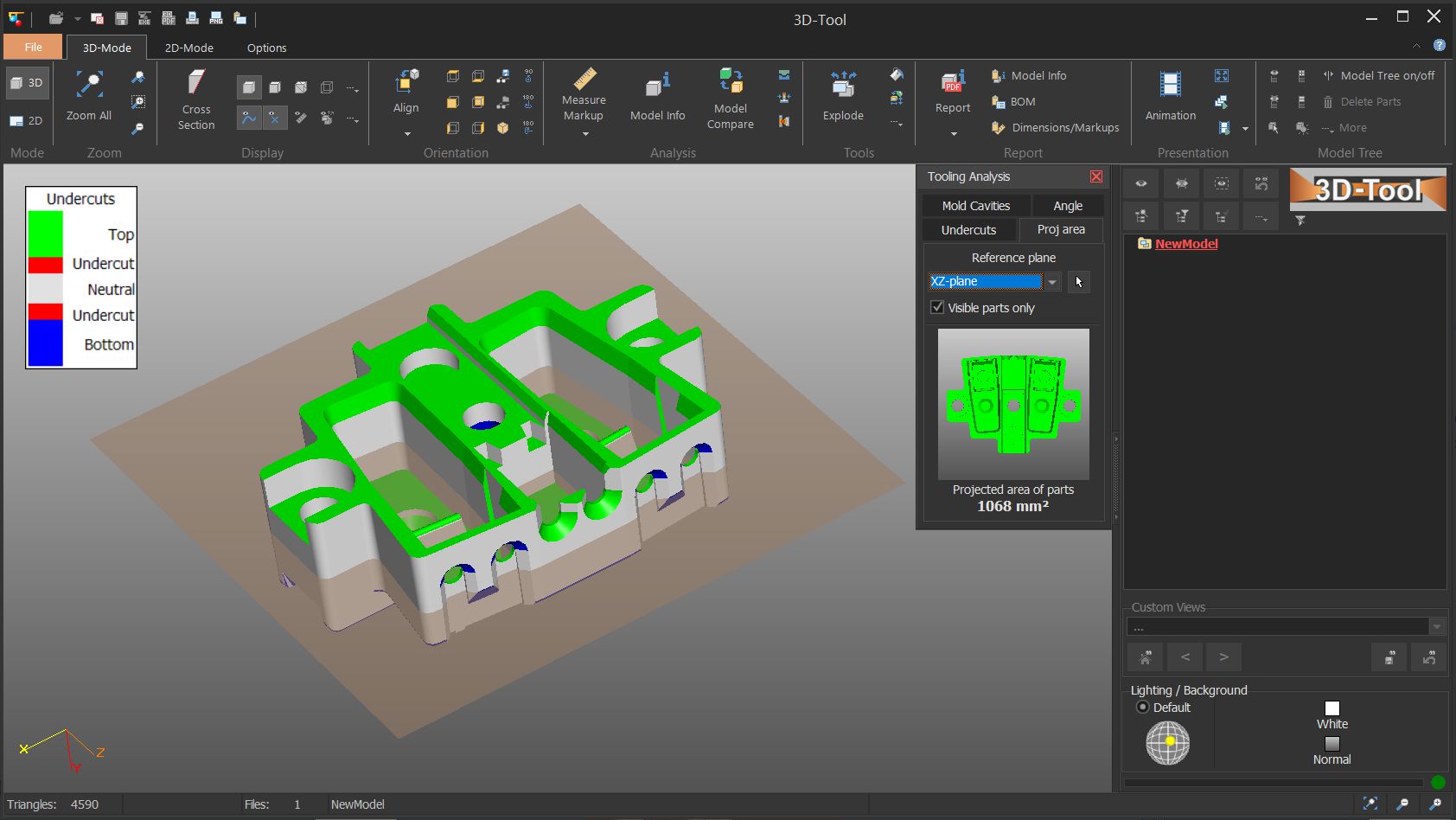

3D-Tool Tooling Analysis shows undercuts and projected area

For the evaluation of molded parts in tool making, drafts and undercuts are displayed in different colors. In order to estimate the clamping forces for molded parts the projected area is calculated.

2D-Mode

3D-Tool as 2D-Viewer for DXF, DWG, SLDDRW und CATDrawing

3D-Tool supports DWG, DXF, CATDrawing and SLDDRW drawings and features 2D measurement tools, redline markups, as well as tools to edit drawing elements.
